Turnkey Projects

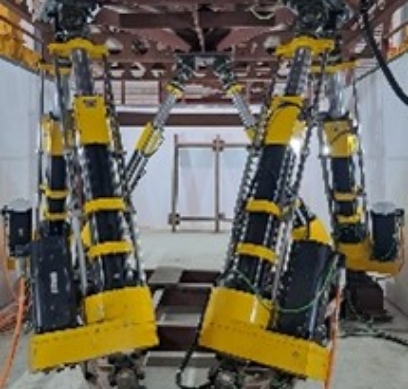

3 Axis Centre of Gravity and Moment of Inertia Measurement Test Setup
This machine is used to measure the weight, 10 mass properties i.e. Centre of Gravity (CG) and Moment of Inertia of Payloads, Equipment and Vehicle etc. ranging from 1200 Kgs to 15000 Kgs. The test machine is developed based on Stewart Platform to determine the mass, C.G. location, and tensor of inertia about C.G. for the various payloads/Test Bodies accurately to ensure the stability of payloads/Test Bodies during Para drop test.

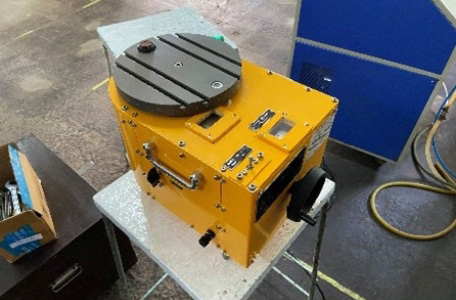

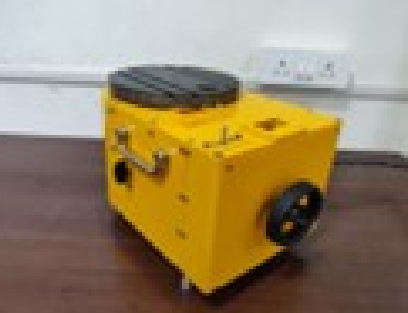

Swivel Table for Calibration of Gyro Sensors
Developed the testing equipment for calibration of gyro sensors of SU-30 MK-I, for the vast speed range i.e. from 0.03 deg/sec to 150 deg/sec in both directions. This instrument is an excellent example of combination of implementation of modern technology in the classic interface.
